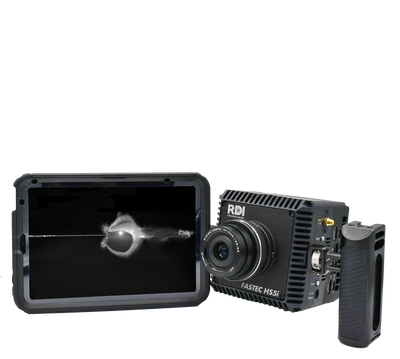

High Speed Cameras for Research & Testing

---

High speed cameras are used in research and industrial environments to capture and analyze events that occur over very short time scales. By recording at thousands of frames per second, these systems enable visualization and measurement of motion, deformation, impact, and flow phenomena that cannot be resolved using conventional video cameras.

Typical applications supported in India include:

• Automotive crash testing and component impact analysis
  Used to study airbag deployment, structural deformation, and failure modes during crash and sled tests.

• Ballistics and defense research
  Capture projectile motion, penetration behavior, shock events, and explosive testing for defense laboratories and research establishments.

• Fluid dynamics and spray analysis
  Visualization of sprays, jets, cavitation, turbulence, and multiphase flows in laboratory and industrial research setups.

• Material testing and fracture analysis
  Observation of crack initiation, propagation, and failure mechanisms during tensile, compression, and impact testing.

• Biomechanics and sports science
  Motion analysis of human movement, injury mechanisms, and equipment interaction in controlled testing environments.

• Aerospace and propulsion testing
  Study of high-speed events such as component vibration, ignition phenomena, and transient aerodynamic behavior.

Orbidot Technologies provides high speed camera solutions tailored to specific testing and research objectives rather than a one-size-fits-all configuration. System recommendations are based on key parameters such as required frame rate, spatial resolution, light sensitivity, trigger accuracy, and test environment constraints.

High speed camera systems may be supplied as standalone imaging units or as part of a complete measurement setup, including:

• High speed cameras suitable for laboratory and field testing

• Application-specific optics and lenses

• LED and high-intensity lighting for short exposure imaging

• Triggering, synchronization, and data acquisition accessories

• Data handling and storage solutions for high frame rate recordings


Where required, high speed imaging systems can be integrated with motion analysis and measurement software to enable quantitative analysis such as displacement, velocity, acceleration, and event timing.

The focus is on ensuring that the selected imaging solution is technically appropriate for the application and can be reliably implemented in real test conditions.

High speed imaging applications often involve complex test environments, safety constraints, and strict data quality requirements. Orbidot Technologies supports organizations across automotive, defense, aerospace, and academic research sectors by assisting at various stages of the imaging workflow.

Support typically includes:

• Technical discussions to define test objectives and imaging parameters

• Assistance in selecting suitable camera configurations for laboratory or field testing

• Guidance on optics, lighting, triggering, and synchronization

• Support during installation, system setup, and initial test execution

• Coordination for application discussions, demonstrations, and evaluations


These services are provided with an understanding of the operational and compliance requirements common to automotive test facilities, defense laboratories, aerospace programs, and academic research institutions.

Orbidot Technologies works with research organizations, industrial test facilities, and engineering teams across India, the UAE, and Sri Lanka to support high speed imaging applications that demand accuracy, reliability, and correct implementation. Our approach begins with understanding the test objective, constraints, and measurement goals before recommending a solution.

Key reasons organizations engage with Orbidot Technologies include:

• Application-focused consultation to define imaging and measurement requirements

• Experience supporting automotive, defense, aerospace, and academic research environments

• Regional support coverage across India, the UAE, and Sri Lanka

• Assistance with system configuration, optics selection, lighting, and triggering

• Coordination with global OEM partners for technical alignment and support


The emphasis is not only on supplying imaging hardware, but on enabling users to obtain meaningful, repeatable, and technically valid data from their high speed imaging setups.

Selecting a high speed camera requires balancing multiple technical parameters against the objectives of the test or experiment. The choice of system depends not only on maximum frame rate, but also on how the camera will be used in the actual test environment.

Key considerations typically include:

• Frame rate and exposure time
  The frame rate must be sufficient to resolve the event of interest, while exposure time must be short enough to avoid motion blur.

• Spatial resolution and field of view
  Resolution requirements depend on the size of the feature being analyzed and the measurement accuracy needed.

• Light sensitivity and illumination
  High speed imaging often requires intense and uniform lighting due to very short exposure times.

• Triggering and synchronization
  Accurate triggering and synchronization are critical for repeatable tests, especially in impact, crash, and ballistic applications.

• Data storage and recording duration
  High frame rates generate large data volumes, making memory depth and data handling an important consideration.

• Test environment and mounting constraints
  Factors such as vibration, temperature, safety enclosures, and available mounting locations influence camera selection and configuration.


A systematic evaluation of these factors helps ensure that the selected high speed camera system delivers reliable and meaningful results for the intended application.

What is a high speed camera?
A high speed camera is a specialized imaging system capable of recording video at very high frame rates, typically ranging from several hundred to hundreds of thousands of frames per second. These cameras are used to observe and analyze fast events that cannot be captured using conventional video cameras.

What frame rate is required for high speed imaging applications?
The required frame rate depends on the speed of the event and the level of temporal detail needed. Applications such as crash testing, impact analysis, and ballistics generally require higher frame rates, while fluid dynamics or biomechanics studies may operate at lower but still elevated frame rates.

Can high speed cameras be used for quantitative measurement?
Yes. When combined with appropriate calibration, lighting, and analysis software, high speed cameras can be used for quantitative measurements such as displacement, velocity, acceleration, and event timing.

Do you provide technical support and assistance during testing?
Orbidot Technologies provides application guidance and technical support to assist users during system setup, initial testing, and configuration. Support availability depends on project scope and location.

Do you support customers outside India?
Yes. In addition to India, Orbidot Technologies supports high speed imaging projects in the UAE and Sri Lanka, depending on project requirements and scope.
